Doosan Main Hydraulic Steering Pump (Part# 400917-00023 / 13533550650) for 420A Loader
Product Overview

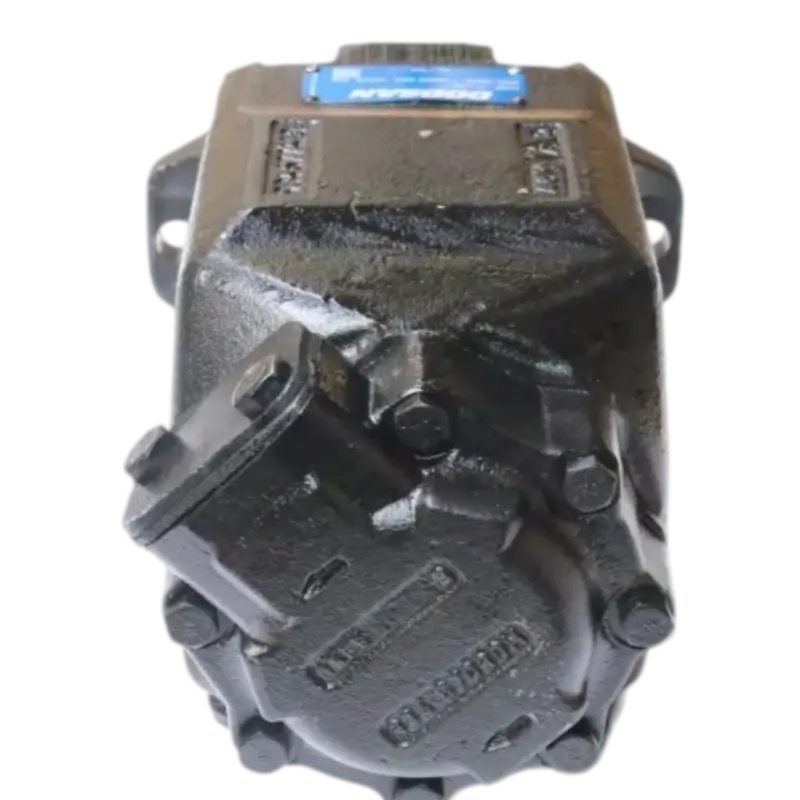

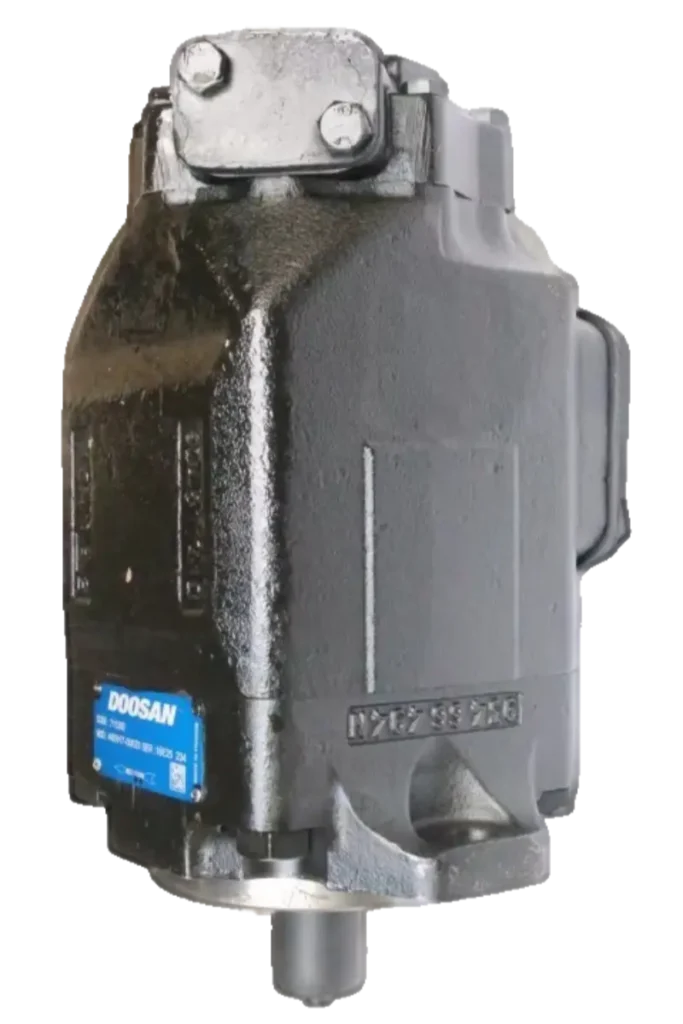

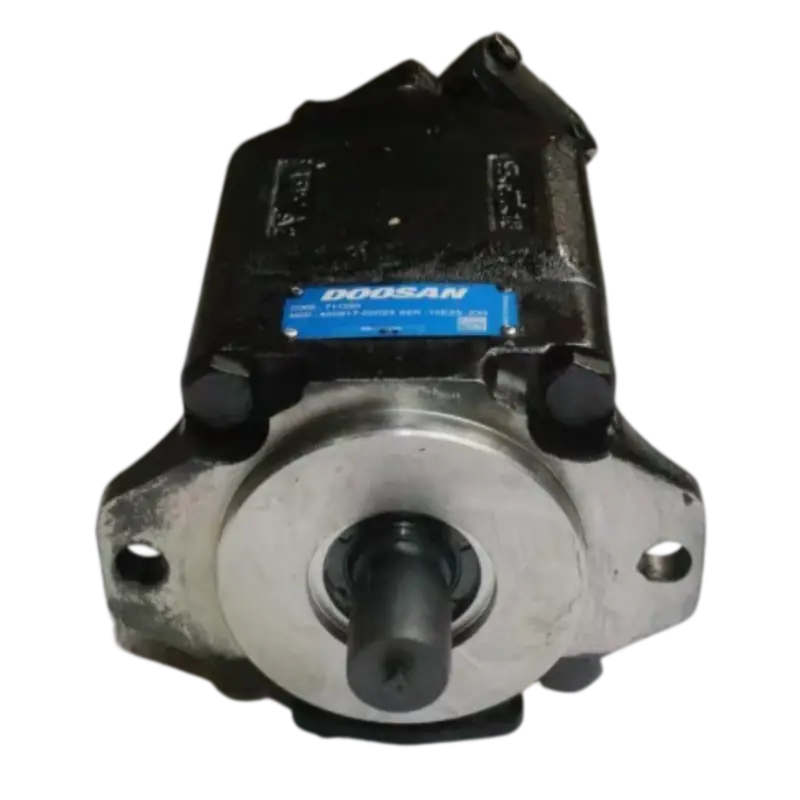

The Doosan Develon Main Hydraulic Steering Pump (Part# 400917-00023 / 13533550650) is a critical hydraulic component designed for the Doosan 420A wheel loader. This main hydraulic steering pump converts engine mechanical energy into hydraulic energy, supplying high-pressure oil flow to the steering gear and steering cylinders for responsive steering control.
We supply this steering pump in two product conditions:
- Original Factory – Made in Korea
- Aftermarket – Made in China
FOB Price: 23,000 RMB (Original Factory) / 4,200 RMB (Aftermarket)
Lead Time: Aftermarket 5-7 days / Original Factory 20-30 days
Warranty: 6 months
Availability: Aftermarket in stock; Original Factory on pre-order.
Project Monitoring
Shipping Order Track
Instructions for Use
VIP Customer Service
Intact Guarantee
Compatible Equipment
- Doosan 420A Wheel Loader
Compatibility must be confirmed using the machine model, serial number, and existing part number before ordering.
Product Application
The main hydraulic steering pump is the power source of the loader’s steering system. Its core function is to convert engine mechanical energy into hydraulic energy and supply high-pressure oil flow to the steering gear and steering cylinders, enabling flexible, light, and reliable steering control.
Key functions include:
- Power source – Driven by the engine through the torque converter transfer gear, it rotates at high speed, draws in hydraulic oil, pressurizes it, and delivers high-pressure oil to the steering system.
- Steering control – High-pressure oil is distributed by the steering gear into the steering cylinder, pushing the piston rod to extend or retract, which turns the wheels or articulates the frame for left and right steering.
- Steering priority – Through a priority valve or flow amplifier valve, the steering system receives priority hydraulic oil. When flow is insufficient, all flow is supplied to steering; when flow is sufficient, excess oil merges into the working system (boom, bucket cylinders) to improve efficiency.
- Emergency steering – If the engine stops or the pump fails, the cycloid pin wheel pair inside the steering gear can act as a manual pump, allowing manual steering effort to draw and pressurize oil into the cylinder for emergency steering.
- Stable flow output – When engine speed changes, a flow amplifier valve or stable flow divider helps regulate flow to the steering cylinder, maintaining stable steering speed.
Common symptoms that may indicate a steering pump issue include increased steering noise, steering wheel binding, noticeably heavier steering, inaccurate steering response, and abnormal noise or vibration during steering. These are general symptoms only; actual diagnosis should be based on inspection of the specific machine.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Doosan Develon |
| Product Name | Main Hydraulic Steering Pump |
| Part Numbers | 400917-00023 / 13533550650 (new/old numbers) |
| Cross-Reference Number | Denison 711250 |
| Product Condition | Original Factory & Aftermarket |
| Application | Doosan 420A Wheel Loader |
| Material | To be confirmed |
| Package Dimensions | 50 x 30 x 40 cm |
| Gross Weight | 40.000 kg |
| Warranty | 6 Months |
| Availability | Aftermarket: In Stock / Original Factory: Pre-order |
| Lead Time | Aftermarket: 5-7 Days / Original Factory: 20-30 Days |
| Place of Origin | Original Factory: Korea / Aftermarket: China |
| Packaging | Wooden case |
Individual product dimensions and material are to be confirmed. Please contact us for verification.
Why Choose Our Steering Pump?
- Dual sourcing options – Choose between Original Factory (23,000 RMB) or cost-effective Aftermarket (4,200 RMB)
- Ready stock – Aftermarket available for immediate shipment
- Competitive pricing – FOB priced per unit
- Quality assurance – 6-month warranty on all products
- Fast delivery – Aftermarket 5-7 days; Original Factory 20-30 days
Product Conditions Available
| Type | Price | Place of Origin | Availability | Lead Time | Description |
|---|---|---|---|---|---|
| Original Factory | 23,000 RMB | Korea | Pre-order | 20-30 Days | Manufactured to original specifications |
| Aftermarket | 4,200 RMB | China | In Stock | 5-7 Days | Premium alternative offering reliable performance at a competitive price |
Please confirm pricing, availability, and lead time before ordering.
Packaging, Shipping & Warranty

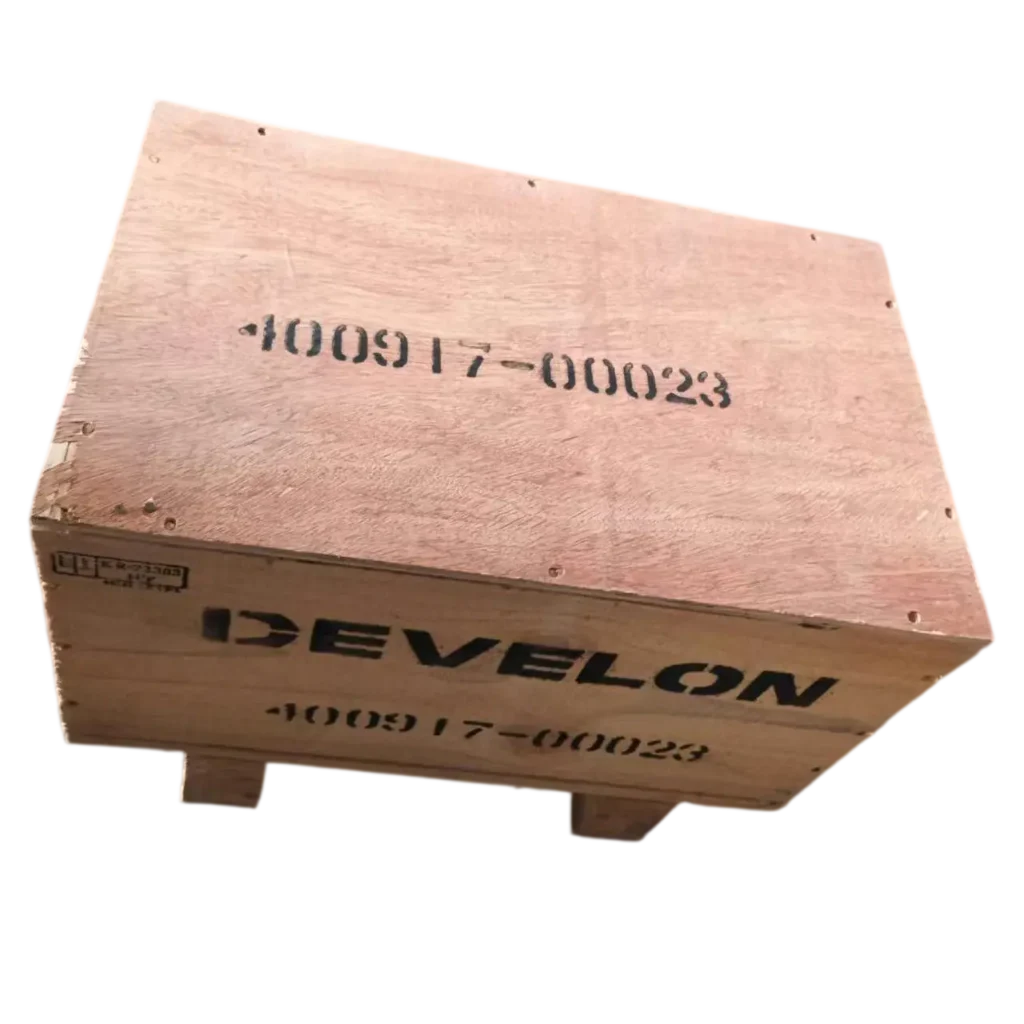

Packaging
- Standard export wooden case
- Package dimensions: 50 x 30 x 40 cm
- Gross weight: 40.000 kg
Shipping
- Aftermarket lead time: 5-7 days
- Original Factory lead time: 20-30 days
- Global shipping available
Warranty
- 6-month warranty against manufacturing defects
- Warranty terms must be confirmed at the time of order
Availability, shipping cost, and delivery time must be confirmed before ordering.
Contact Us for Inquiry
Before placing an order, please confirm the following details with our sales team:
- Machine brand and model
- Machine serial number (S/N)
- Current part number
- Product photos
- Required quantity
- Destination country
