Doosan DE12 / MD196TI Engine Overhaul Kit (Part# 150115-00006) – Original Factory & Aftermarket
Product Overview
The Doosan Engine Overhaul Kit (Part# 150115-00006) is a comprehensive service kit designed for the DE12 engine and the MD196TI marine engine, used across various Doosan excavators and marine applications. This complete overhaul kit includes all critical wear components needed to restore engine performance, compression, and reliability after high-hour operation.
We supply this overhaul kit in two product conditions:
- Original Factory – Manufactured to Doosan’s original specifications (Made in China)
- Aftermarket – High-quality alternative with reliable performance (Made in China)
FOB Price: $3,800 RMB (Aftermarket) / $8,800 RMB (Original Factory) per kit
Lead Time: 5-7 days
Warranty: 6 months
Both options are available in stock.
Related Products & Categories
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details and Optimal price.
Project Monitoring
Shipping Order Track
Instructions for Use
VIP Customer Service
Intact Guarantee

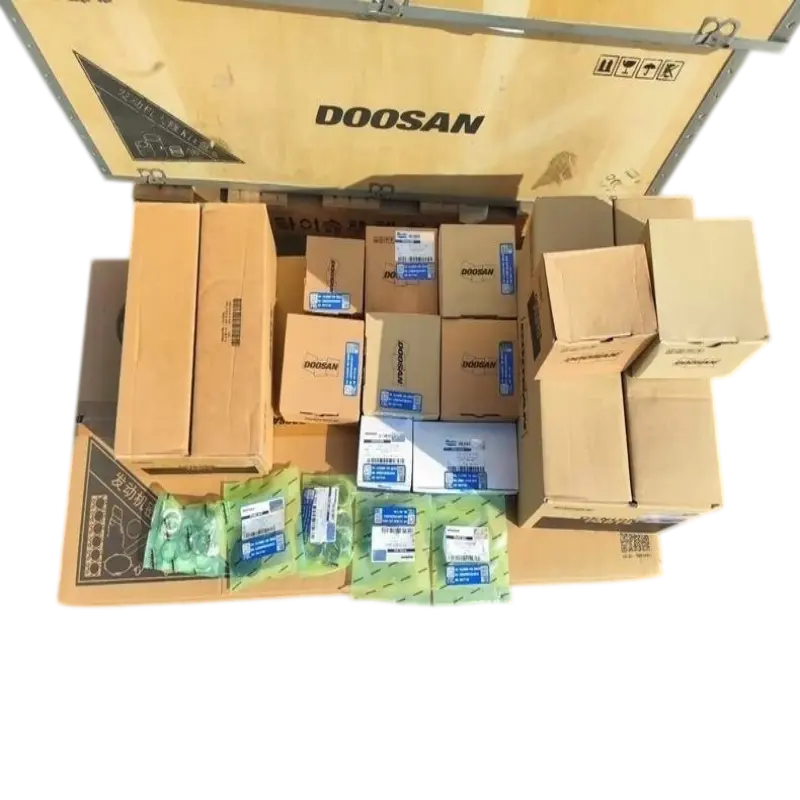

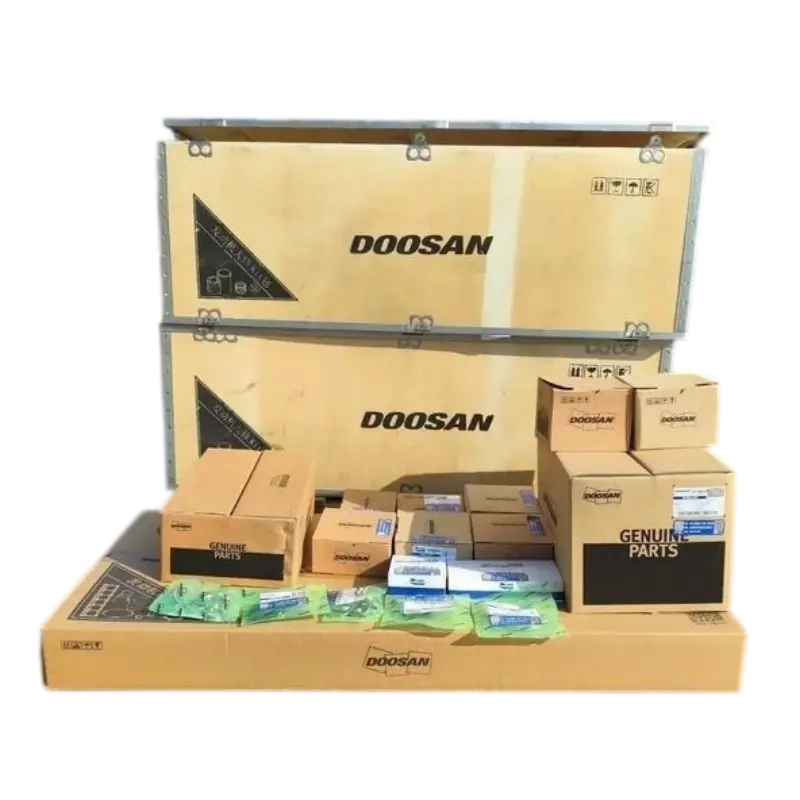

Kit Contents
| Component | Quantity |
|---|---|
| Connecting rod bearing (below) | 1 |
| Connecting rod bearing (above, standard) | 1 |
| Cylinder liner | 6 |
| Piston ring | 1 |
| Valve guide tube | 12 |
| Valve seat (exhaust) | 6 |
| Valve seat (intake) | 6 |
| Intake valve | 6 |
| Exhaust valve | 6 |
| Piston | 6 |
| Piston pin | 6 |
| Clamp ring | 12 |
| Main bearing (below, standard) | 1 |
| Main bearing (above, standard) | 1 |
| Thrust washer (above) | 2 |
| Thrust washer (below) | 2 |
| Full seal package | 1 |
| Wooden box packaging | 1 |
Product Specifications
| Specification | Details |
|---|---|
| Brand | Doosan |
| Product Name | Engine Overhaul Kit (Service Kit) |
| Part Number | 150115-00006 |
| Product Condition | Original Factory & Aftermarket |
| Application | DE12 Engine / MD196TI Marine Engine |
| Packaging | Wooden case |
| Package Dimensions | 110 x 35 x 53 cm |
| Weight | 45 kg |
| Warranty | 6 Months |
| Availability | In Stock |
| Lead Time | 5-7 Days |
| Place of Origin | China (Original Factory & Aftermarket) |
Compatible Equipment
Excavators
- DX345LC
- DX380
- DX420LC
- DX470LC
- DX500LC
- DH330
- DH370LC-9
- DH420LC-7
- DH500
- Solar 420LC
- Solar 470LC
- Solar 500LC
Marine Engines
- MD196TI
Compatibility must be confirmed using the machine model, serial number, and current part number before ordering.
Product Application
The engine overhaul kit is used during a major engine rebuild. It includes all critical wearing components needed to restore compression, oil control, and overall engine efficiency. Rebuilding the DE12 or MD196TI engine with a complete kit helps:
- Extend engine service life
- Reduce oil consumption
- Restore lost power output
- Prevent internal coolant leakage
Common reasons for performing an overhaul include high operating hours, loss of compression, excessive blow-by, high oil consumption, or internal coolant leakage. A complete kit ensures that all key components are replaced in one service operation, reducing the risk of mismatched parts.
Why Choose Our Overhaul Kit?
- Comprehensive kit – Includes all major wear components for a complete rebuild
- Dual sourcing options – Choose between Original Factory (8,800 RMB) or cost-effective Aftermarket (3,800 RMB)
- Ready stock – Available for immediate shipment
- Quality assurance – 6-month warranty on all products
- Fast delivery – 5-7 days lead time
Product Conditions Available
| Type | Price | Place of Origin | Description |
|---|---|---|---|
| Original Factory | 8,800 RMB | China | Manufactured to Doosan’s original specifications |
| Aftermarket | 3,800 RMB | China | Premium alternative offering reliable performance at a competitive price |

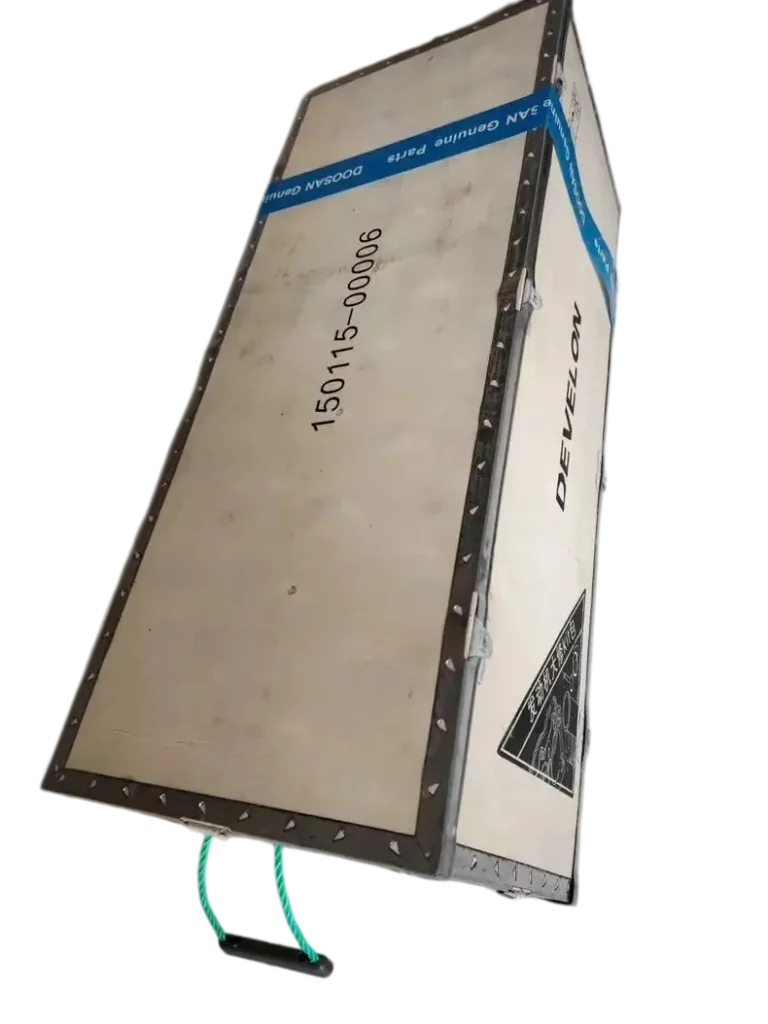

Packaging, Shipping & Warranty
Packaging
- Standard export wooden case
- Dimensions: 110 x 35 x 53 cm
- Weight: 45 kg
Shipping
- Lead time: 5-7 days
- Global shipping available
Warranty
- 6-month warranty against manufacturing defects
- Warranty terms must be confirmed at the time of order
Availability, shipping cost, and delivery time must be confirmed before ordering.
